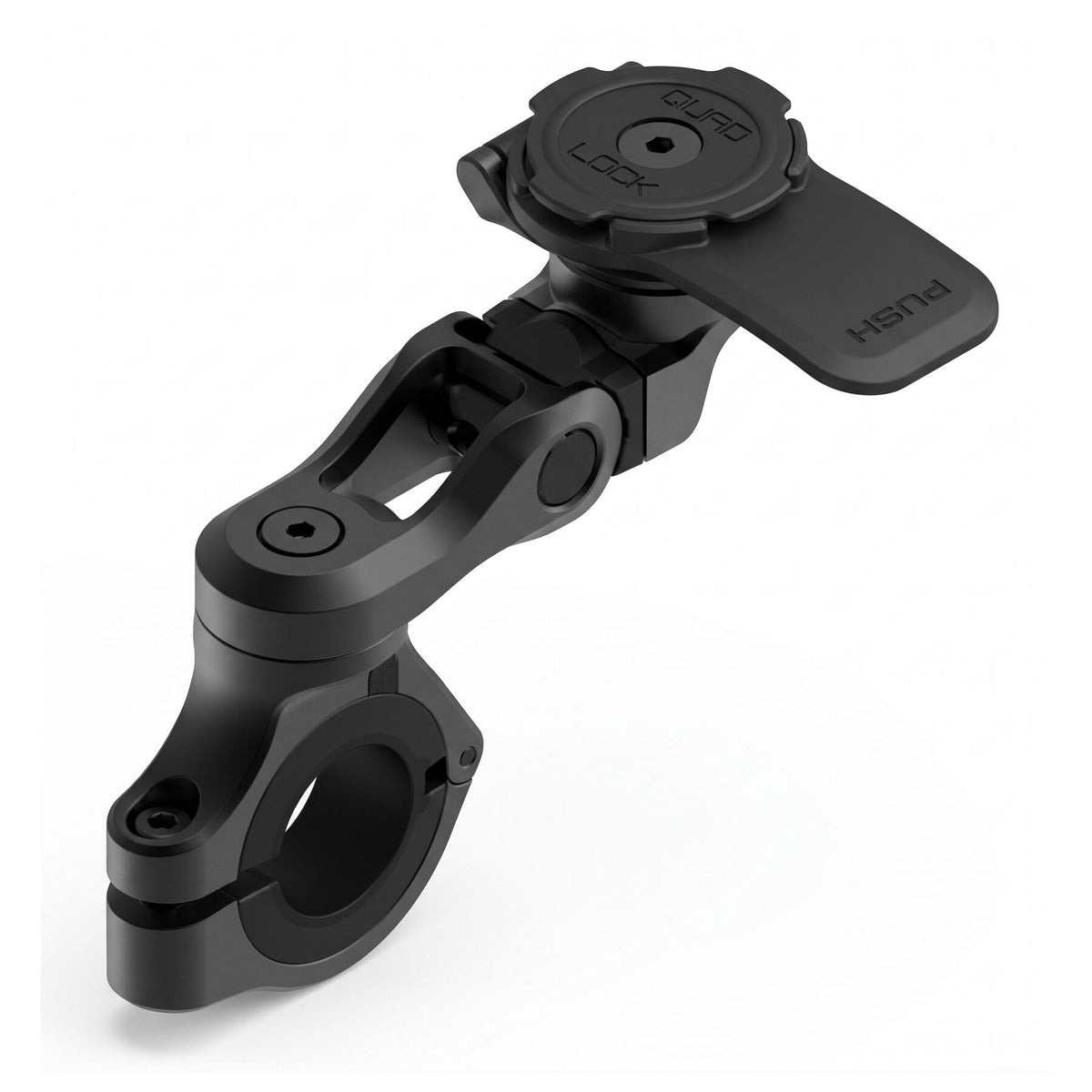

Quad Lock Handlebar Mount PRO Adjustable QLM-HBR-PRO-ADJ

Quad Lock Handlebar PRO Adjustable Mount

The Handlebar PRO Adjustable Phone Mount features precision CNC-machined anodized aluminum construction paired with stainless steel hardware for maximum durability. An innovative third axis provides complete up, down, side-to-side, and pivot adjustability via a single 3mm Allen bolt to achieve optimal smartphone viewing angles on non-parallel handlebars. Integrated discreet cable routing maintains a clean setup during USB charging, while the patented dual-stage lock keeps devices secure and remains fully compatible with optional vibration dampeners. Designed to fit bar diameters ranging from 7/8" to 1-3/8" (22mm to 35mm) using included spacers, the Quad Lock Adjustable PRO Mount delivers a highly adaptable smartphone mounting solution for any motorcycle cockpit.

Includes:

• Complete kit: Adjustable arm, bar mount, and Quad Lock Index Head
• 1 x Quad Lock® Index Head (with black lever)
• 1 x Handlebar Mount PRO Clamp
• 1 x Adjustable Arm PRO
• 4 x Bar spacers
• 1 x M5 x 35mm CSK hex socket screw (for Wireless Charging Heads)
• 1 x Allen (Hex) Key

Features:

• Black anodized aluminium clamp and arm, made by precision CNC
• Quad Lock Part # QLM-HBR-PRO-ADJ
• Assembled with black lever & hardware
• Fits handlebar diameters: ⅞", 1", 1-⅛", 1-¼" and 1-⅜”
  • (22mm, 25mm, 28mm, 32mm and 35mm)
• Adjustable mount head for your ideal viewing angle, 360 degree rotation and up to 80 degrees of tilt
• Rotation and tilt set together with a single screw
• Preload tension holds the arm in position while you set your angle
• 360 degree arm rotation on the handlebar
• Discreet cable route for USB charge cables (remove plug in upper clamp to access)
• Dimensions: 108 x 68 x 88mm (4.25 x 2.68 x 3.46 in)
• Weight: 130g (4.6 oz)

this is just the mount, vibration damping, chargers and cases are separate
