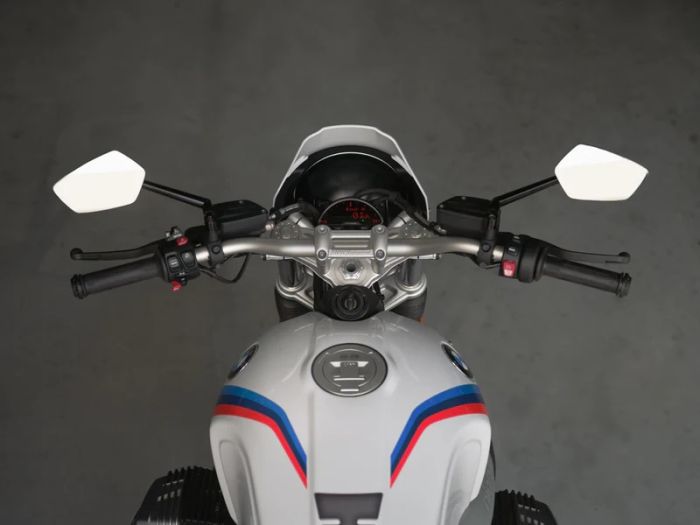

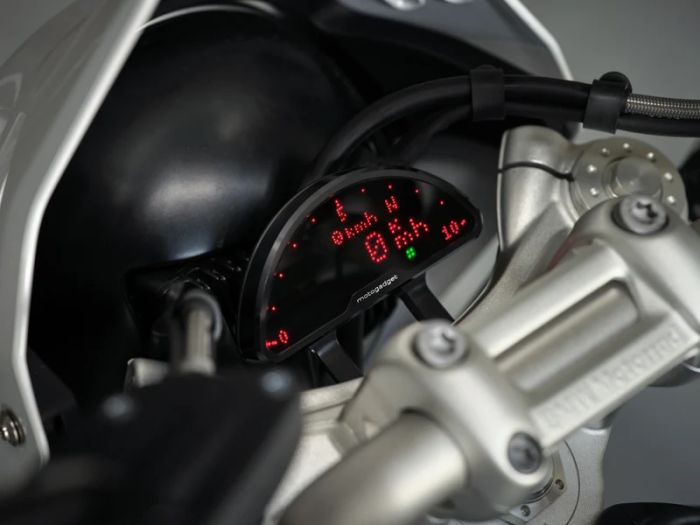

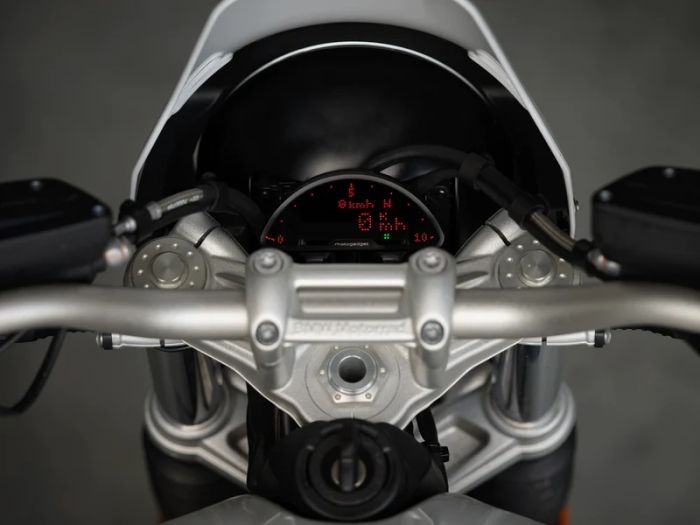

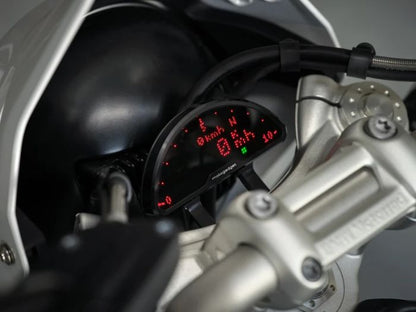

Motoscope Pro 2 BMW R NineT
The plug and ride kits for the BMW R9T series allow easy conversion even for the less technically experienced. The exchange is very simple and can be done in 10 minutes without any technical knowledge.
The kits are already completely wired and only need to be connected to the vehicle plug. The vehicle warranty remains intact and the switch back to the original condition is possible at any time! Compatible with all models of the R9T series year of manufacture 2014- 2016 and the series with Euro 4 (from model year 2017). Also Urban G/S, Pure, Racer and Scrambler.
No modifications to the vehicle are necessary. No access to the battery or tank is necessary. No further adjustments are necessary. Dismantling is possible at any time.
For the BMW R9T a Breakout Box is not necessary.

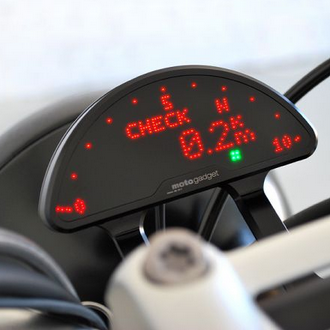

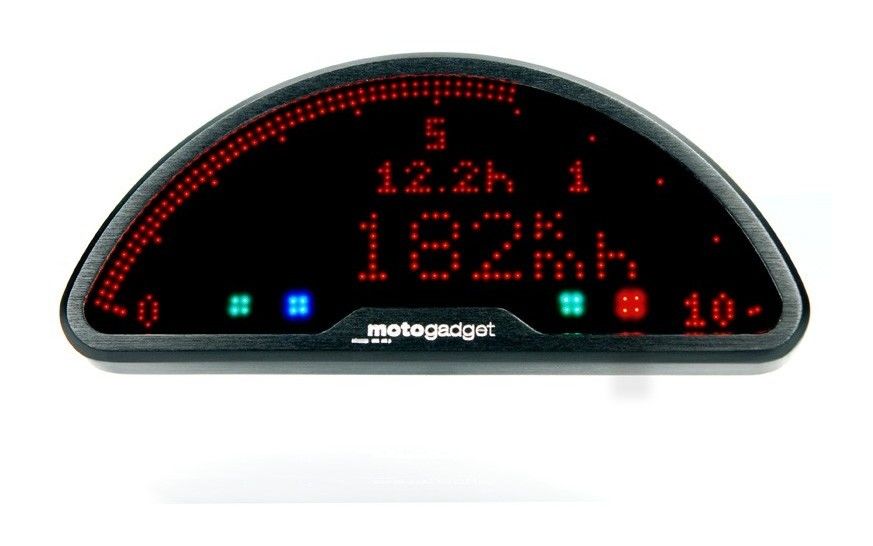

A LED matrix display enables an ultra thin housing design. 734 LEDs, controlled by a 16-bit RISC processor - creates an almost rimless, self-illuminating display. It provides optimal readability even under conditions of direct sunlight. Features automatic diming for optimal readability in direct sunlight or in the dark of night.
The rev-counter is displayed fully scalable via the analogue LED band with drag indicator function. Main and secondary displays are user configurable. Another display section shows the gear currently engaged.
Four indicator lights are pre-installed and can be used for far more input signals. The billet aluminum casing is cnc-machined and is easily mounted by two backside threaded holes on the back of the instrument.
Please note: Cruise control is not supported and the BMW alarm system will not work with this gauge.

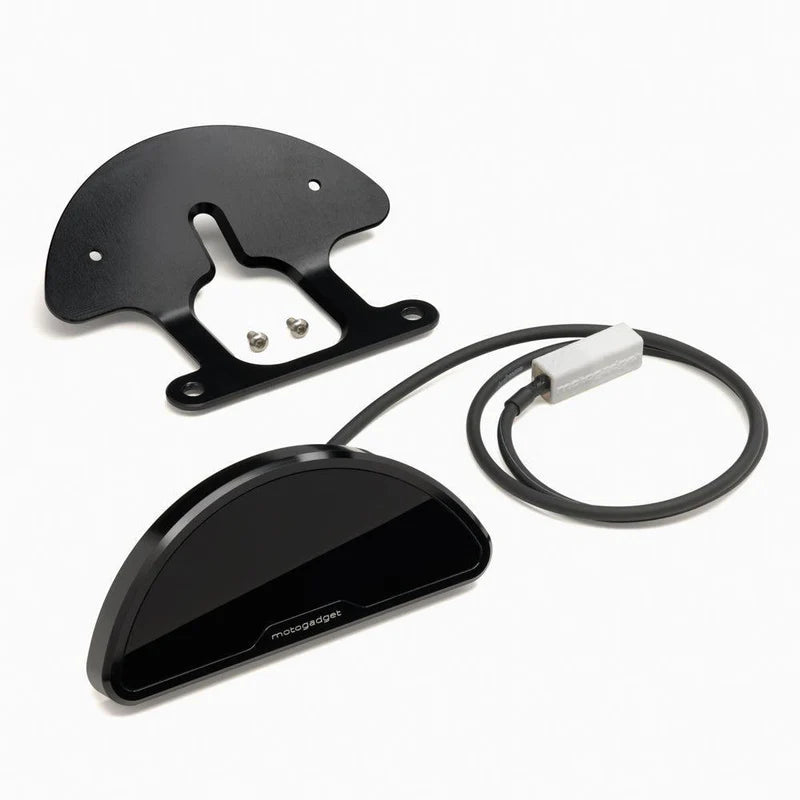

Parts Included
• motoscope pro 2 60cm connection cable
• Vehicle connector to BMW R9T
• Pre-assembled mounting plate with screws
• detailed installation and operating instructionsAvailable with or without Mounting bracket
Specifications And Features
The following functions are possible with the motoscope 2 on BMW R9T 2017-2023:
• Operation with the original handlebar buttons
• Setting and display of the heating handle levels
• Setting and displaying the driving modes
• Speed (kmh/mph)
• Odometer (km/mi)
• Trip A (km/mi)
•Trip B (km/ml)
• Speed display as bar and number
• Switching flash (adjustable)
• Acceleration (g)
• Time measurement 0-100 kmh or 0-60mph (s)
• Onboard voltage (V)
• Travel time (hh:mm:ss)
• Operating hours counter (h)
• Average speed (kmh/mph)
• Maximum values RPM, acceleration, speed
•Reserve
• ABS
• Oil pressure
• Gear indicator
• Neutral
• Turn signal left / right
• High beam
