motogadget motoscope classic tachometer / speedometer

Motogadget Motoscope Classic Tachometer
The Motogadget Motoscope Classic is a digital multi-purpose instrument in a classic round casing. A White dial is contrasted by a Red indicator for timeless good looks.

as seen on our Thruxton

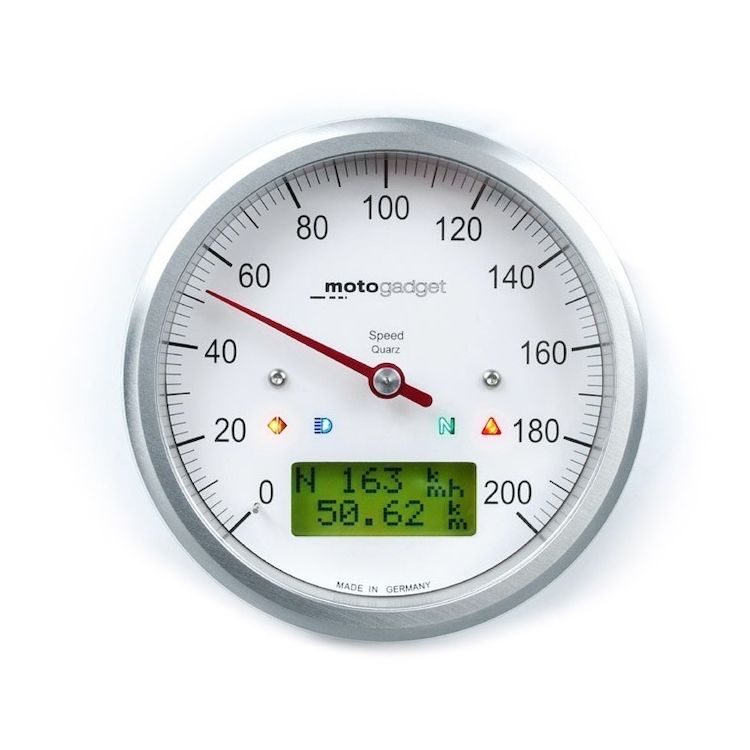

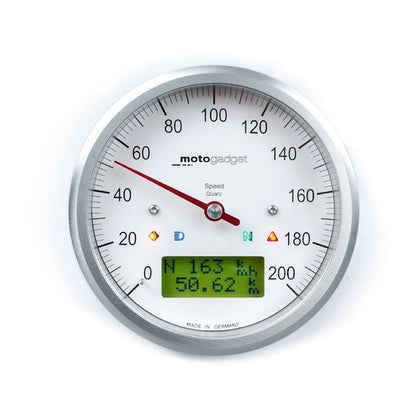

Gauge is available with the sweep as a tachometer OR MPH/KPH
LCD can display either.

Features:

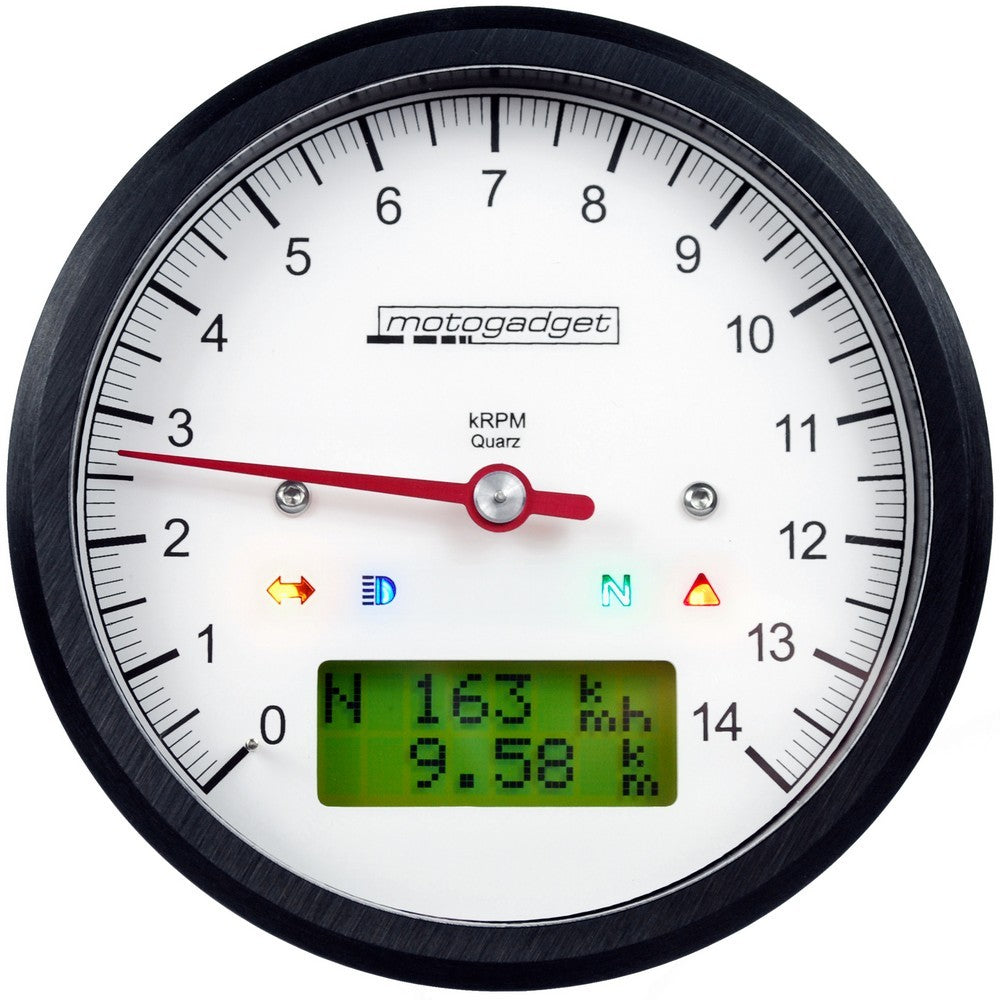

Analog tachometer dial driven by a precision stepper motor

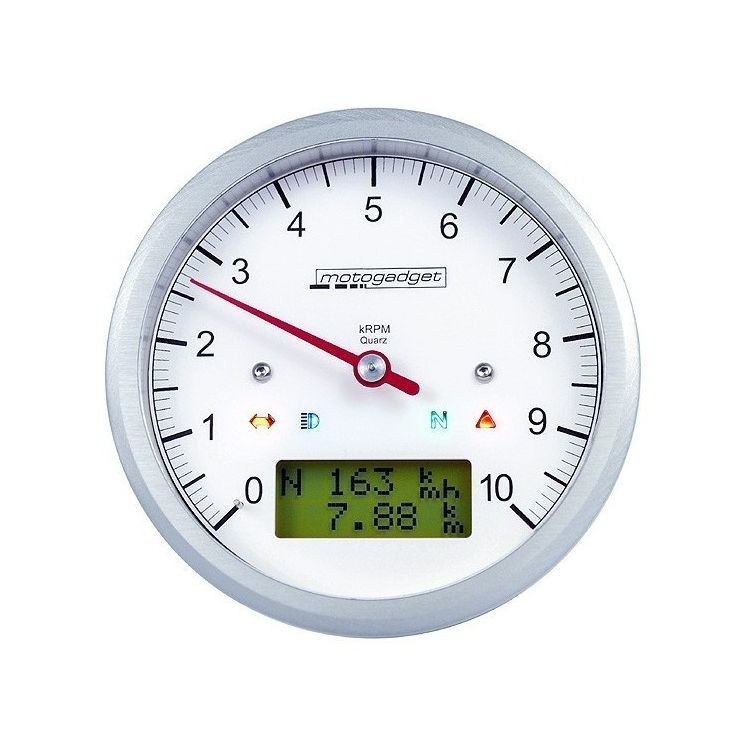

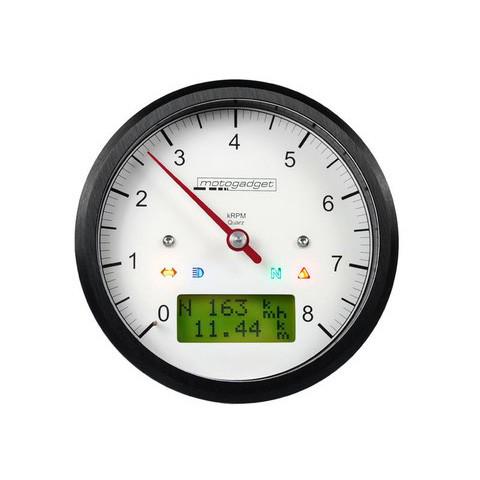

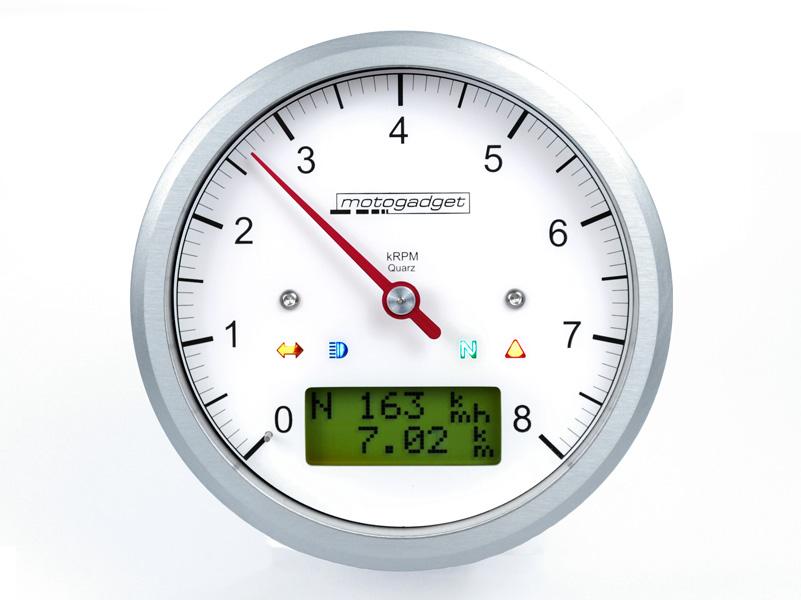

Available in 8,000, 10,000 or 14,000 RPM or MPH/KPH
Displays: speed, average speed, max speed, max rpm, max positive acceleration (0-20.0 m/s2), max negative acceleration, gear indicator (1-6), trip meter, odometer (adjustable), battery voltage, air temperature (optional instead of water temp), oil temp 40-160°C (104-320°F) with high/low warning, oil pressure 0-8 bar (0-116psi) with high/low warning
Indicator lights: turn signal, high beam, neutral, Red triangle for different warning functions either external (e. g. oil pressure switch) or internal (rpm, temperature, pressure, voltage)
Mounting diameter: 80mm (3.15")
Bezel diameter: 85mm (3.35")
Depth without cable fitting: 34mm (1.34")

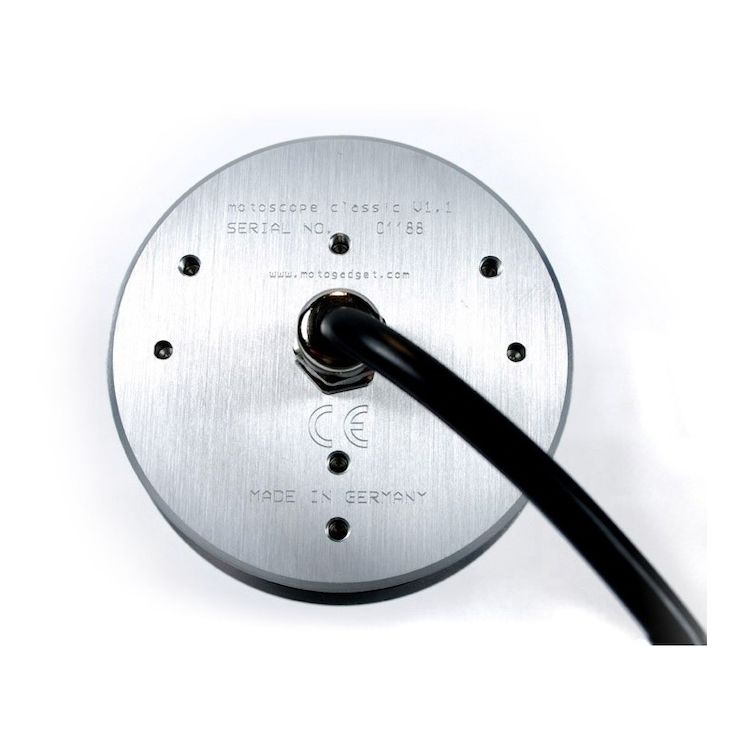

Mounts via three M4 threaded holes on rear face
Made in Germany
Includes:
Instrument with 55cm (21.5") connection cable
Miniature push-button switch
Stainless steel speedometer sensor (M5x0.5) with 150cm (59") connector cable
2 neodymium mini magnets
3 M4 mounting screws with washers
Detailed installation and operating instructions
Note: Mount, temperature and pressure sensors sold separately. The gear shift indicator is a mathematical function calculated from rpm and ground speed values and does not require any internal transmission sensors.
