Motogadget mo.view Sport 110 pivot bar mirror - 7/8" Bars 7004092

SKU: MG7004092

$159.00 USD
$159.00 USD
Sale Sold out
Shipping calculated at checkout.

In Stock
View full details
  • DESCRIPTION
  • FITMENT

  • Sold Each, order qty of 2 for pair

    Fits 7/8" bars only

    The compact solution with 110mm (4.3") arm length, for scrambler or super moto. Quick installation with a wide range of mounting options without modifications to the handlebars. The high-quality, CNC-milled folding clamp is extra narrow for minimum space requirements. The integrated flip mechanism for folding the mirrors is ideal for narrow passages, when transporting vehicles or when there are space problems in the garage. The mirror has ECE marking and can be mounted above or below the handlebars.

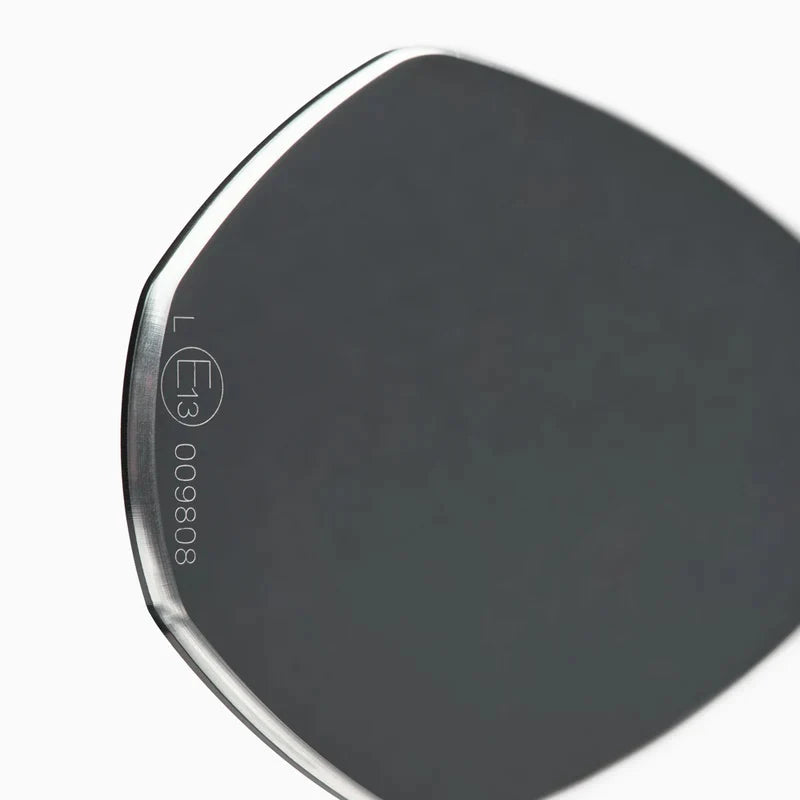

    Our glassless mirror series mo.view is unique in the world. The special feature of our mirrors is the patented mirror surface, which is worked directly from the metal of the body. The aluminum itself is the mirror surface.

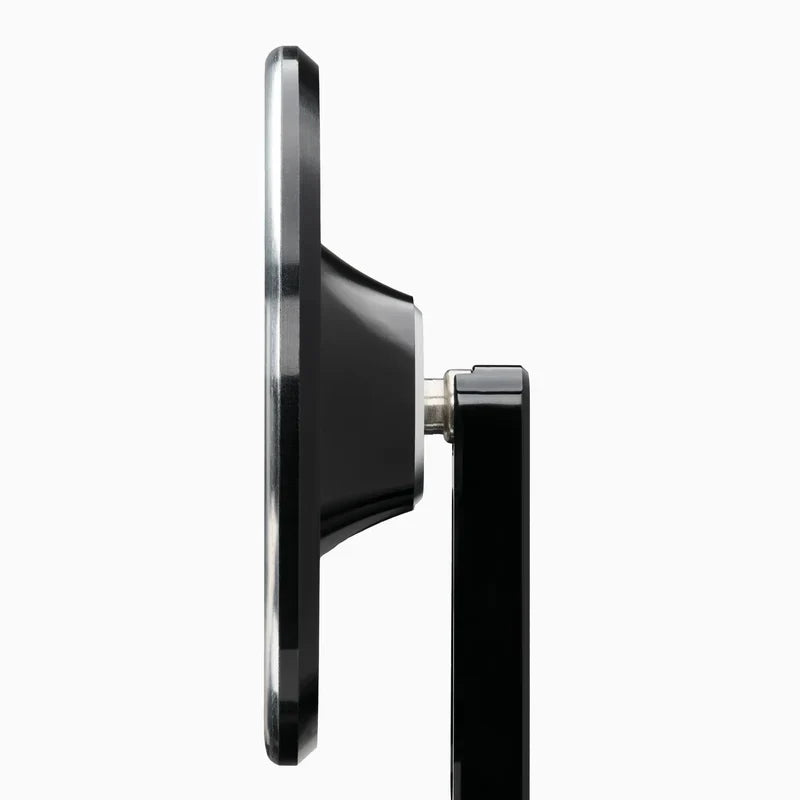

    The mirror body is very thin and light, resulting in a weightless design without a rim or frame. The convex mirror surface is produced by flycutting using diamond tools on ultra-precision machines in Berlin. It is then made resistant to oxidation, corrosion and abrasion by an elaborate plasma coating in a vacuum.

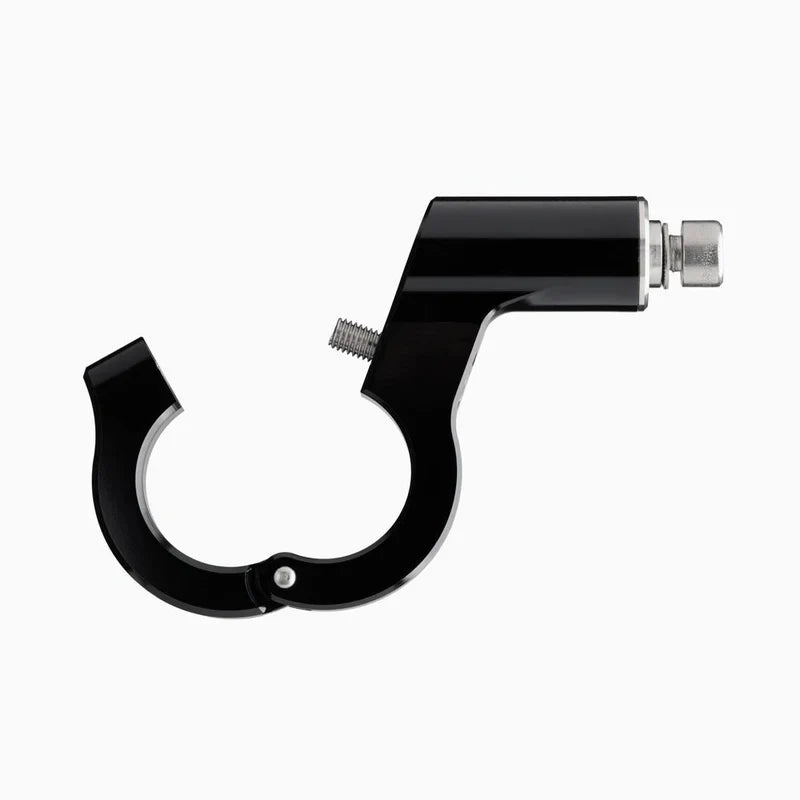

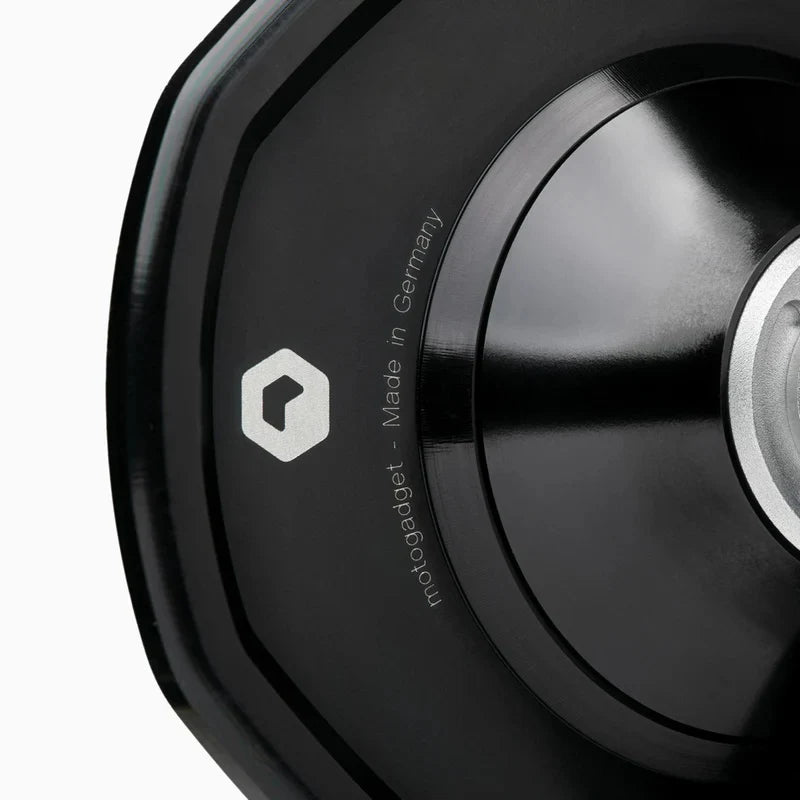

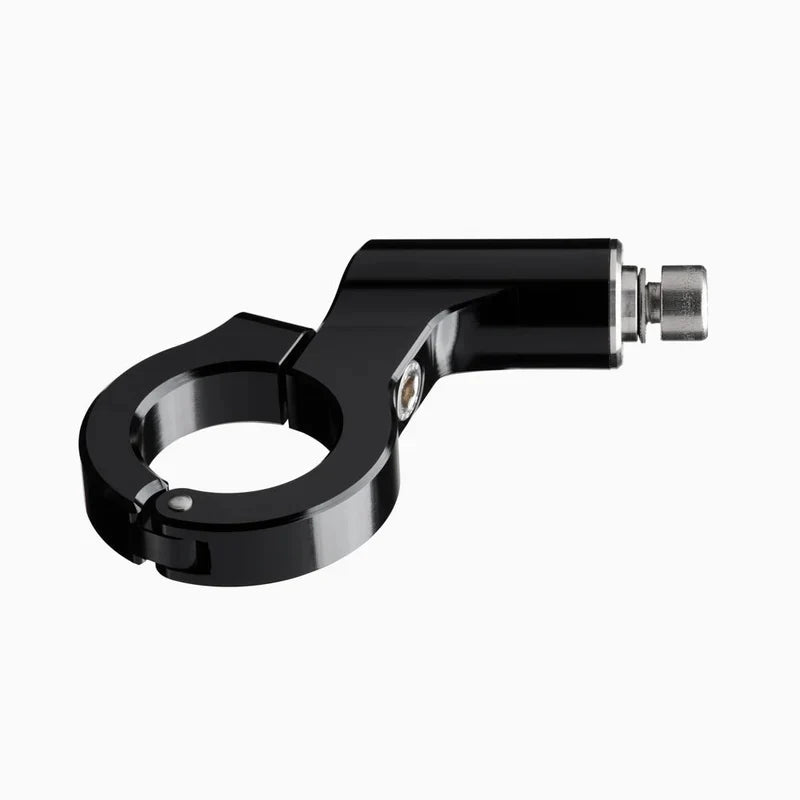

    The mirror body, mirror arm and clamp are milled from solid aluminium on CNC
    machines and anodized to a high quality. All screws are made of stainless steel. The precise ball joint allows the mirror to be adjusted comfortably and very stably. Broken or fallen out glasses are simply not possible.

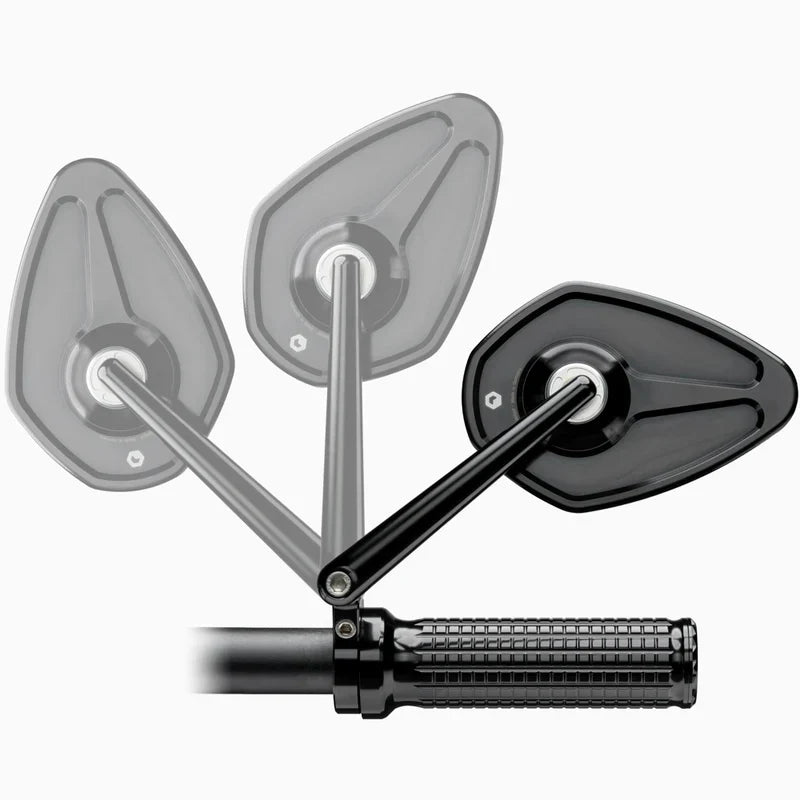

    The add-on mirror can be mounted above or below the handlebars. The arm can be swiveled and locks into place in 45° steps. The mirror is suitable for the right and left side. It is mounted on the handlebars, depending on the version for 7/8" or 1" handlebar diameter. A free handlebar area of 10 mm width is required for mounting, no modifications to the handlebars or fittings are necessary.

    The size of the mirror surface corresponds to the StVZO and it has an ECE
    marking, making it suitable for any motorcycle without registration.

    Technical Data

    • Mirror body width: 122 mm (4.8")
    • Mirror body height: 83 mm (3.27")
    • Thickness of the mirror body without ball head: 4.5 mm (0.18")
    • Clamp diameter: 22.2 mm (7/8 inch) or 1 inch
    • Clamp width: 10 mm (0.4")
    • Weight: 260 g / 0.573 lbs / 9.17 oz

    Scope of delivery

    • 1x mo.view sport 110 pivot mirror (with ECE marking) with 110 mm (4.3") arm
    • 1x pivot clamp
    • QR code for mounting and operating instructions
