Motogadget mo.switch plain 2 Button - Black Housing / Stainless Buttons - 1” or 7/8”

Motogadget mo-Switch Plain  for 7/8" or 1” Bars

Black Housing / Stainless Buttons

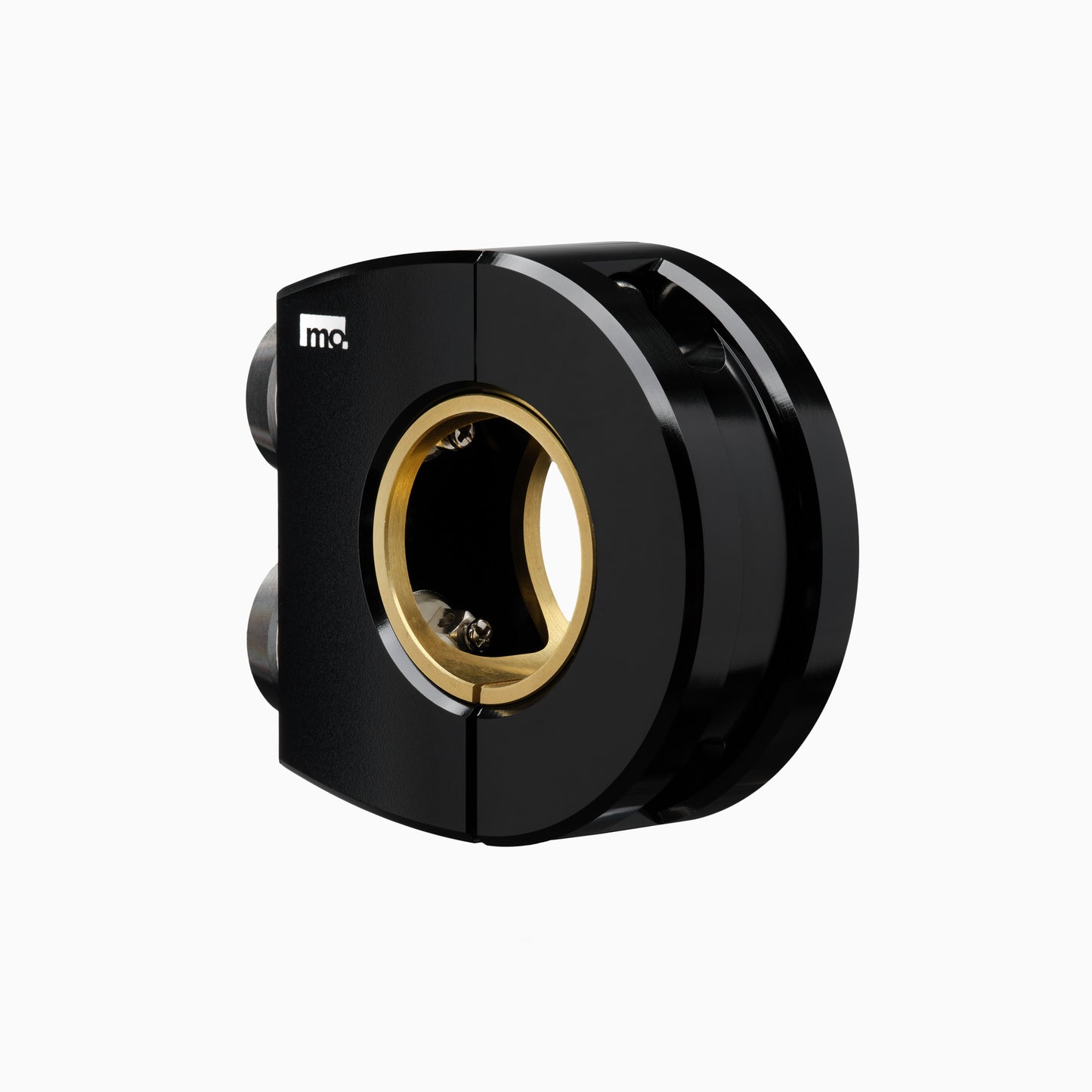

mo.switch plain

The mo.switch is a universal, high-quality pushbutton switch for handlebars with 1 inch or 22 mm (7/8 inch) tube diameter in a simple, elegant design. In conjunction with an electronic push button control (not included), these beautiful CNC machined fittings can switch all electrical units such as lights, turn signals, e-starter, horn and much more.

New design with brass sleeve for 7/8” bars

CNC machined from billet aluminum, the housing is available in a gloss black anodizing. The compact housing allows mounting of two or more units on one handlebar.

The two or three pushbuttons per unit, in black or stainless steel/can be
freely combined to match or contrast with the housing. Two (with 3 pushbutton unit one screw) recessed M5 stainless steel mounting screws clamp the pushbutton control securely and stably to any handlebar.

The push-buttons are of high quality, very robust and protected against vibrations and splash water (IP65).

Thanks to their sufficient size and ergonomic pressure point (light, mechanical detent), they provide a secure switching feel when actuated - even when operated with gloves. This feedback means you know immediately what you are doing without having to check the switching process every time.

With two connections per push-button, one-wire or two-wire wiring is easily possible. A connection for ground is already provided internally for single-wire wiring. Cable routing in the handlebars is therefore simple.

In the event of damage, the buttons are available individually and can be replaced.

The mo.switch plain is of course compatible with all standard push-button controls such as the mo.unit.

Technical Data

Inner diameter 22.2 mm or 1 Inch
Outer diameter approx. 49 mm (1.93")
Width 20.5 mm (0.807")

Scope of Delivery

1x mo.switch aluminum housing
