m.view METALMIRROR

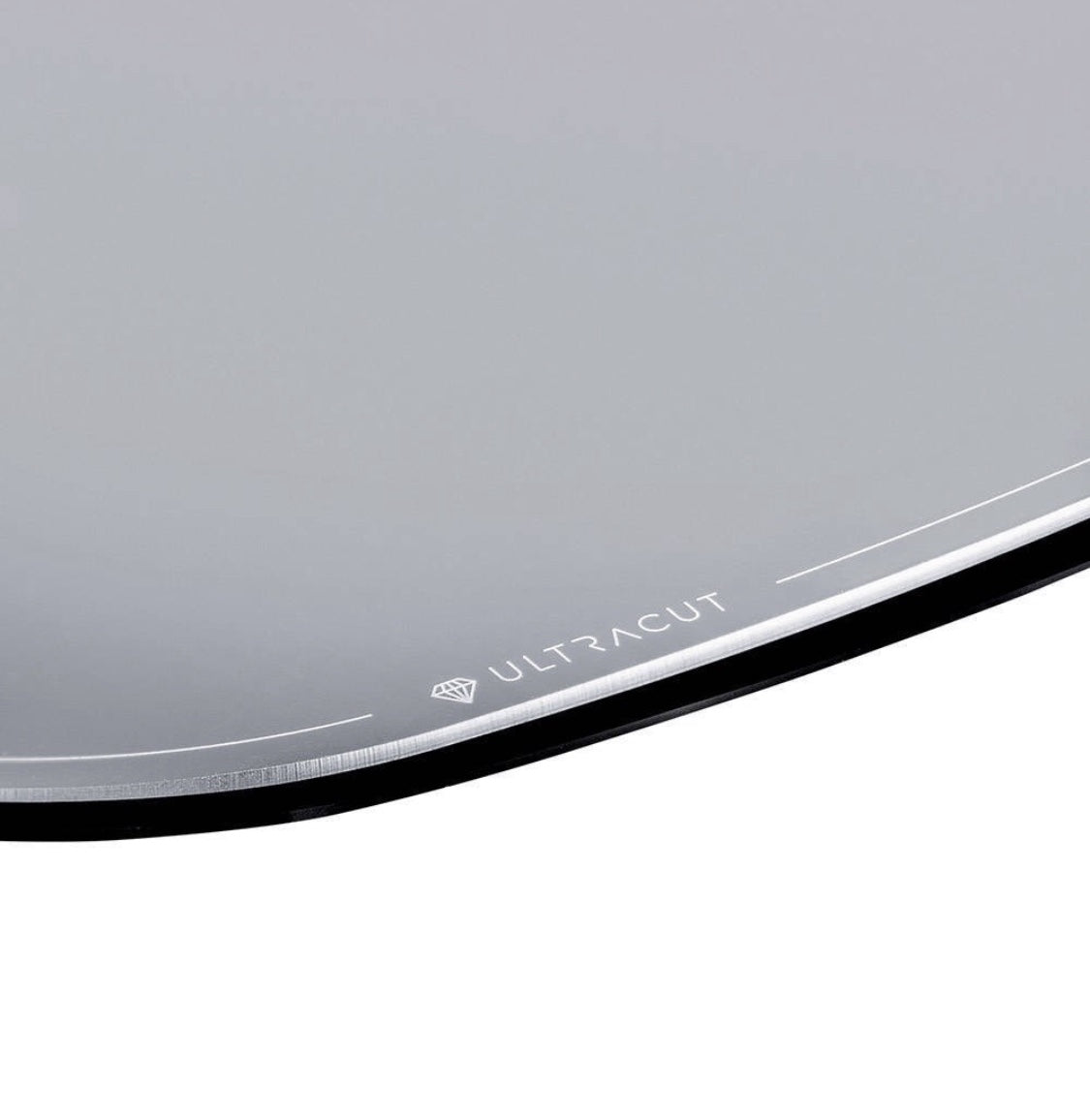

motogadget now exclusively presents its glassless mirror series m.view. The special feature of this motorcycle mirror is the patented mirror surface, which is worked directly into the metal of the body. The Aluminium itself is the mirror surface!
A weightless design without edge and frame is possible and the mirror body itself becomes very thin and light.
Shattered glass or fallen out glass are simply not possible!The convex mirror surface is produced in flycutting by means of diamond tools on ultra-precision machines. It is then made resistant to oxidation, corrosion and scratches by a complex plasma coating process in a vacuum.The mirror body, mirror arm and the clamping for the handlebar end are milled on CNC machines from solid aluminium and anodized to a high quality. All screws are made of stainless steel. The precise ball joint allows a comfortable and very stable adjustment of the mirror.m.view blade

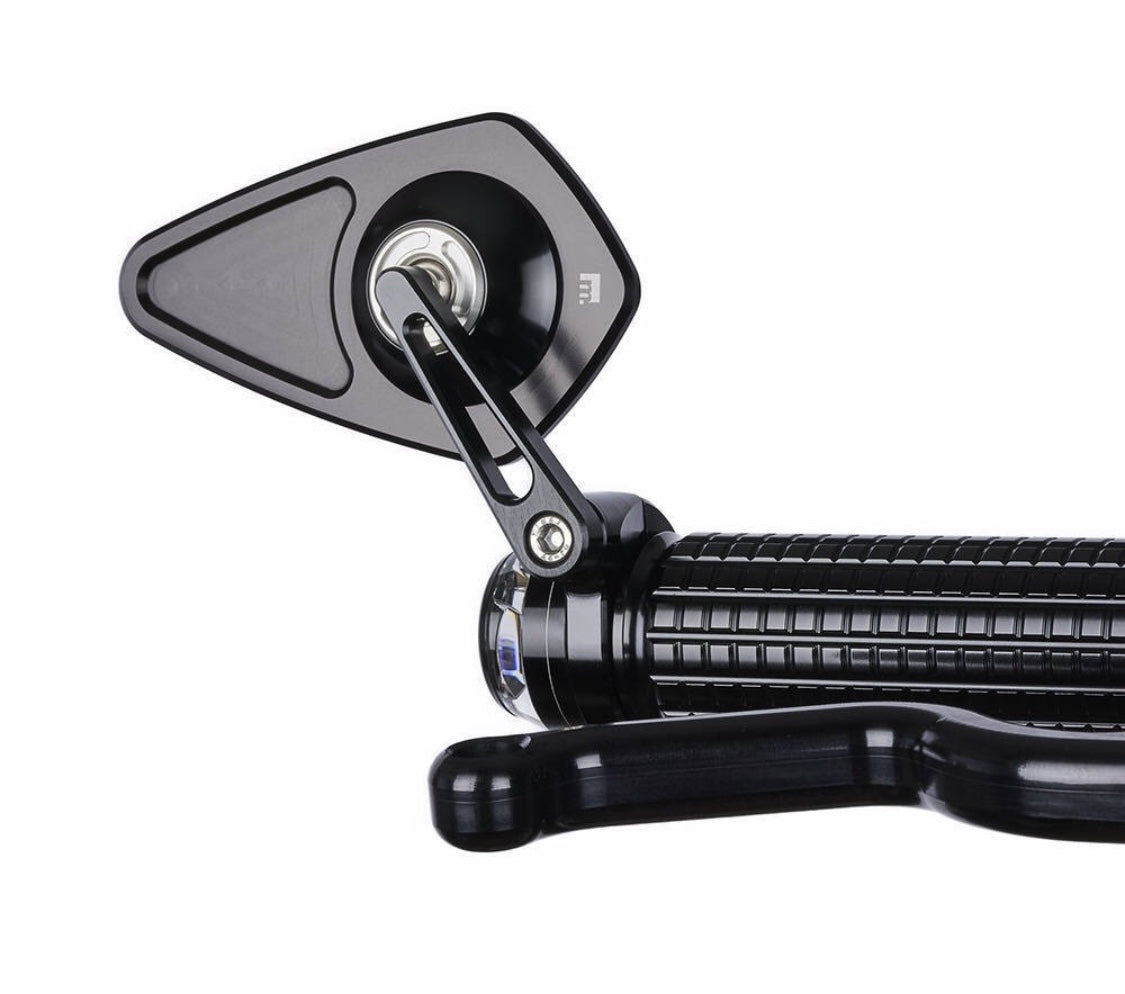

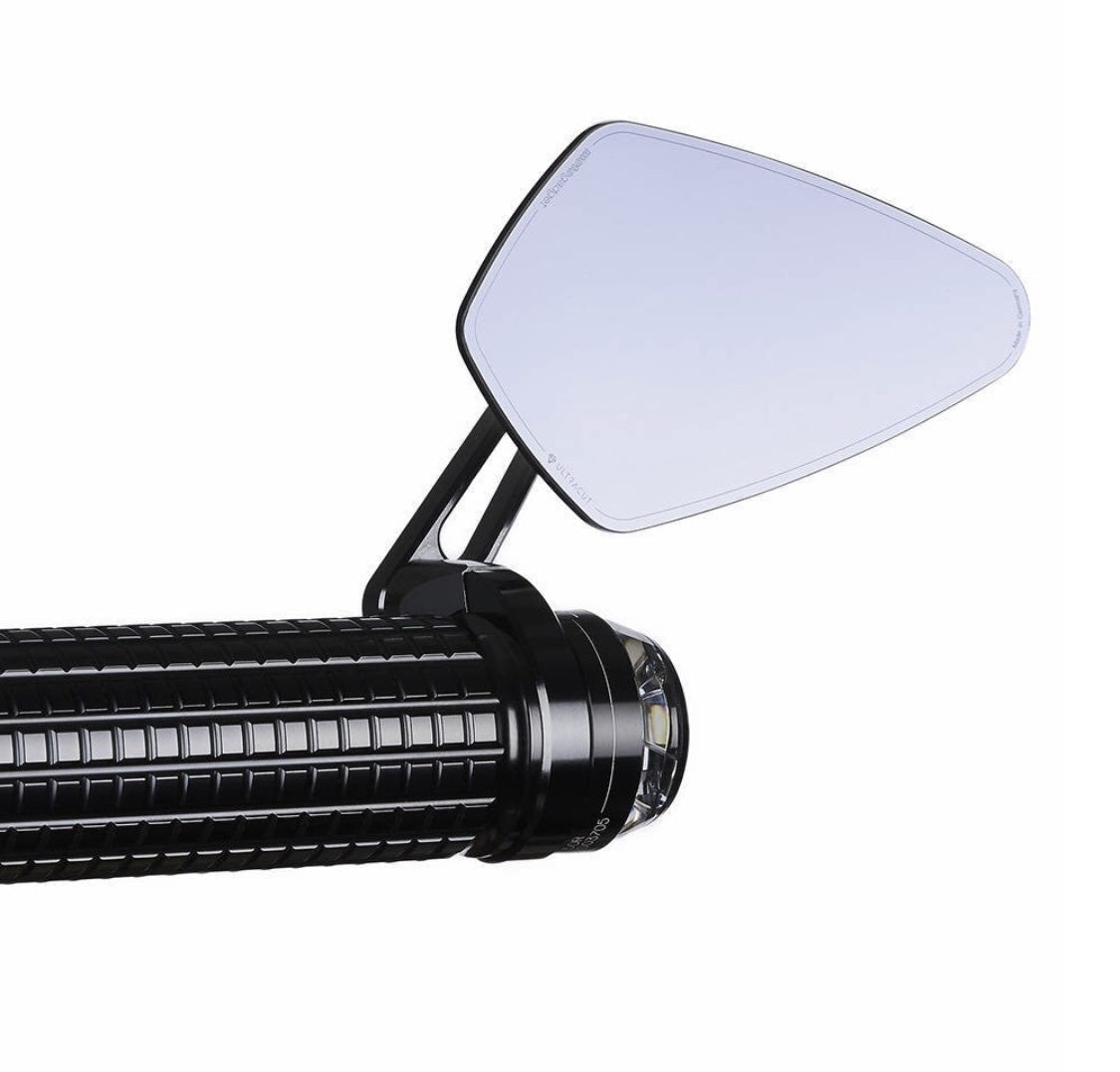

The handle bar end mirror m.view blade is very small, reduced and fits perfectly to our bar end indicators and the grip m.grip as well as the push button controls m.switch and m.switch mini. It can be mounted above or below the handlebars. The mirror is suitable for the right and left side. It is mounted directly on the handle bar. Includes bushing for 7/8” or 1” bars.Specifications and features
Dimensions
Width of mirror body: 100 mm
Height of mirror body: 60 mm
Thickness of the mirror body without ball head: 4 mm
Lenght of the stem: 61 mm
Inner diameter of the clamp: for 22 mm / 7/8” and 1 inch handle bar
Clamping width: 8 mmIncludes in package is 1 rear view mirror m.view blade with stem and clamp
