BT Moto Stage 1+ ECU Flash with Handheld Tuner - 2022+ Triumph Tiger 1200

The 2022–2027 Triumph Tiger 1200 combines Triumph's 1160cc T-Plane triple cylinder engine with one of the most sophisticated adventure bike platforms available, but the factory ECU calibration still leaves a surprising amount of performance untapped, especially in the upper RPM range.

BT Moto developed our Stage 1+ ECU Flash Tune for the 2024–2027 Triumph Tiger 1200 to unlock more of the engine's available horsepower and torque while improving throttle response, midrange acceleration, thermal management, and overall rideability.

This is a true OEM+ ECU tuning solution. No piggyback fuel controllers, external tuning boxes, or unnecessary add-ons are required. Instead, BT Moto recalibrates the factory Triumph ECU directly.

The result is stronger acceleration throughout the powerband and massive gains in the upper RPM range, where the difference between the stock and BT Moto calibrations becomes increasingly dramatic.

Best of all, tuning is available through the BT Moto Handheld Tuner, allowing you to read and flash your Tiger 1200 ECU from the comfort of your own home or shop and return the motorcycle to its original calibration whenever needed.

2024–2027 TRIUMPH TIGER 1200 STAGE 1+ FEATURES

• More horsepower and torque throughout the RPM range
• Massive upper RPM and top end power gains compared with the factory calibration
• Factory engine management strategies recalibrated to deliver more of the 1160cc engine's available performance
• Fueling and ignition mapping optimized for improved power, response, and consistency
• Per-cylinder fueling optimization using the factory ECU strategy
• Improved midrange power and roll-on acceleration
• Sharper and more predictable throttle response
• Raised RPM limiter for a wider usable powerband
• Factory top speed limiter increased or removed where applicable
• Optimized thermal management strategies for cooler and more consistent engine temperatures
• Earlier cooling fan activation, a BT Moto exclusive calibration feature
• Injector cut off strategy smoothed to reduce overly aggressive stock deceleration
• Calibration support for popular and proven exhaust, intake, and performance modifications
• Customized mapping based on your motorcycle's specific configuration
• Calibration options to correct flashing ABS and Traction Control warning lights caused by aftermarket tire or sprocket sizing
• No piggyback fuel controller or external tuning module required
• Ability to return the ECU to its original stock calibration with the BT Moto Handheld Tuner

UNLOCK THE 2024–2027 TRIUMPH TIGER 1200

The modern Triumph Tiger 1200 ECU controls far more than basic fueling.

Engine output is managed through a combination of electronic throttle control, torque strategies, fueling, ignition timing, RPM limits, speed limits, thermal management, and other ECU tables.

These strategies determine how much of the engine's available performance actually reaches the rear wheel.

BT Moto addresses these areas directly inside the factory ECU rather than attempting to manipulate sensor signals with an external device.

Our Stage 1+ calibration optimizes the engine management strategy throughout the RPM range, resulting in stronger throttle response, better midrange acceleration, and dramatically improved high RPM power delivery.

The improvement becomes increasingly noticeable as RPM rises. Where the factory calibration begins limiting performance near the top of the powerband, the BT Moto calibration allows the Tiger 1200 to continue pulling significantly harder.

DYNO PROVEN TIGER 1200 PERFORMANCE

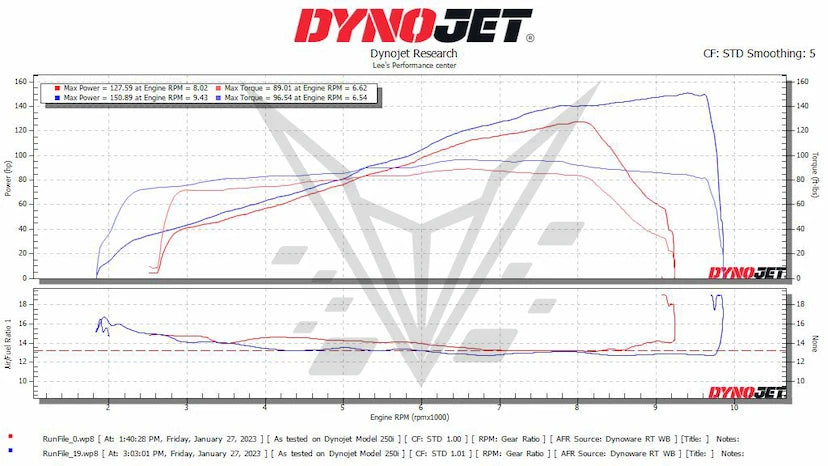

BT Moto's Triumph Tiger 1200 Stage 1+ ECU tune was developed and validated using same day, back-to-back Dynojet testing.

Testing was performed on a stock Triumph Tiger 1200 using California 91 octane pump gasoline with no mechanical changes between the factory and BT Moto ECU calibrations.

91 OCTANE DYNO RESULTS

Factory ECU:
127 WHP / 89 WTQ

BT Moto Stage 1+:
150 WHP / 96 WTQ

That's approximately 23 additional wheel horsepower at peak and an increase of approximately 7 lb ft of wheel torque.

But peak-to-peak horsepower doesn't show the full improvement.

The farther the engine moves into the upper RPM range, the larger the advantage becomes. Near the factory redline, testing showed a difference approaching 30 wheel horsepower compared with the stock ECU calibration.

This completely changes the character of the Tiger 1200 when accelerating through the upper portion of the powerband.

Instead of feeling like the engine is running into an electronic wall, the Stage 1+ calibration allows it to continue pulling strongly toward the extended RPM limit.

Published development testing was performed using a Triumph Tiger 1200 with 91 octane pump gasoline. Actual results can vary based on model year, fuel quality, motorcycle configuration, environmental conditions, dyno type, and installed modifications.

MORE USABLE POWER, NOT JUST A BIGGER PEAK NUMBER

Our goal isn't simply to produce the largest possible horsepower number on a dyno chart.

A properly developed Tiger 1200 ECU tune should improve the motorcycle throughout the operating range.

BT Moto optimizes fueling, ignition, throttle response, torque delivery, RPM range, and related engine management strategies to create a stronger and more predictable motorcycle.

The result is better roll-on acceleration, stronger passing power, improved midrange response, and substantially more top end performance.

This is especially noticeable during higher speed acceleration, where the stock calibration begins restricting the engine while the BT Moto calibration continues producing power.

BETTER THROTTLE RESPONSE AND RIDEABILITY

Adventure motorcycles spend far more time at partial throttle than they do at 100% throttle, which makes throttle response and rideability just as important as maximum horsepower.

BT Moto recalibrates the Tiger 1200's engine management strategies to create a more direct and predictable relationship between rider input and engine response.

The result is stronger midrange acceleration, improved on throttle response, smoother power delivery, and better overall engine behavior.

We also smooth the factory injector cut off strategy to reduce overly aggressive deceleration when the throttle is closed.

The goal is not to compromise the Tiger 1200's refinement, it's to improve it while adding substantially more performance.

COOLER AND MORE CONSISTENT ENGINE TEMPERATURES

BT Moto also recalibrates the factory thermal management strategies to help the Tiger 1200 operate at more favorable and consistent temperatures.

Our calibration includes earlier cooling fan activation, allowing the cooling system to begin managing temperature sooner rather than waiting for the higher factory activation threshold.

This is especially beneficial during slower riding, traffic, hot weather, and other conditions where airflow through the radiator is reduced.

OEM+ ECU TUNING, NOT A PIGGYBACK

Our approach is to improve the Tiger 1200 using the sophisticated engine management system Triumph already engineered into the motorcycle.

There are no piggyback fuel controllers to install, no additional wiring harnesses, and no external tuning boxes attempting to manipulate sensor signals.

BT Moto modifies the calibration inside the factory Triumph ECU itself.

This gives us access to the fueling, ignition, throttle, torque, RPM, speed limiter, thermal management, deceleration, and other strategies that actually determine how the engine performs.

Whether your Tiger 1200 is completely stock or equipped with supported intake, exhaust, or other performance modifications, your calibration can be configured specifically for your motorcycle.

Factory level integration with substantially more usable performance.

TUNE YOUR TIGER 1200 FROM HOME

The BT Moto Handheld Tuner allows you to read and flash your Triumph Tiger 1200 ECU from the comfort of your own garage or shop.

Once your motorcycle is configured with the handheld, calibration files can be transferred directly to the device and flashed into the factory ECU.

The handheld gives you the ability to receive updated calibrations remotely, change supported tune configurations, read and clear diagnostic trouble codes, and return the motorcycle to its original stock calibration whenever needed.

If you change a supported exhaust, air filter, or another modification in the future, an updated calibration can be supplied without repeatedly removing or shipping your ECU.

No piggyback. No permanent modification. No unnecessary complexity.

More horsepower. More torque. Better response. A wider powerband. Factory level integration.
