Motogadget m.view bar End mirror adapter BMW cap R Nine T

M.view Bar Adapter BMW Cap

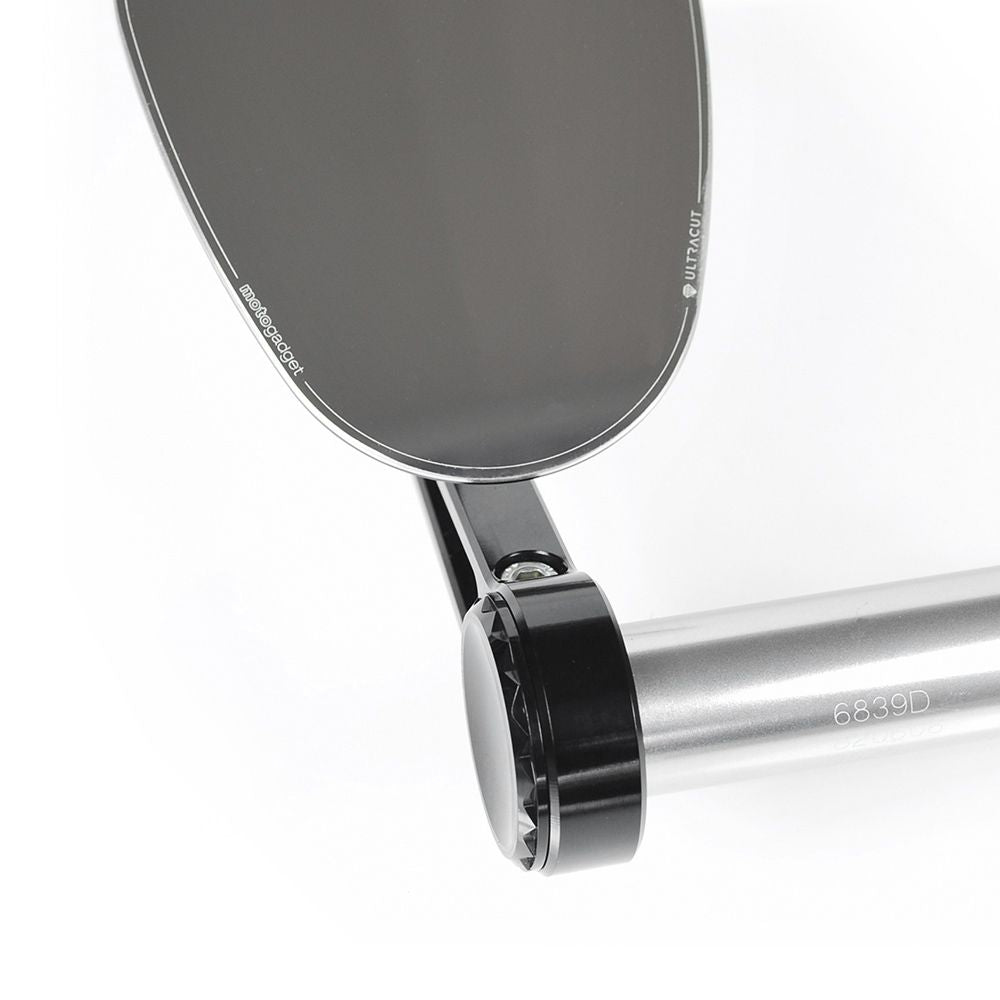

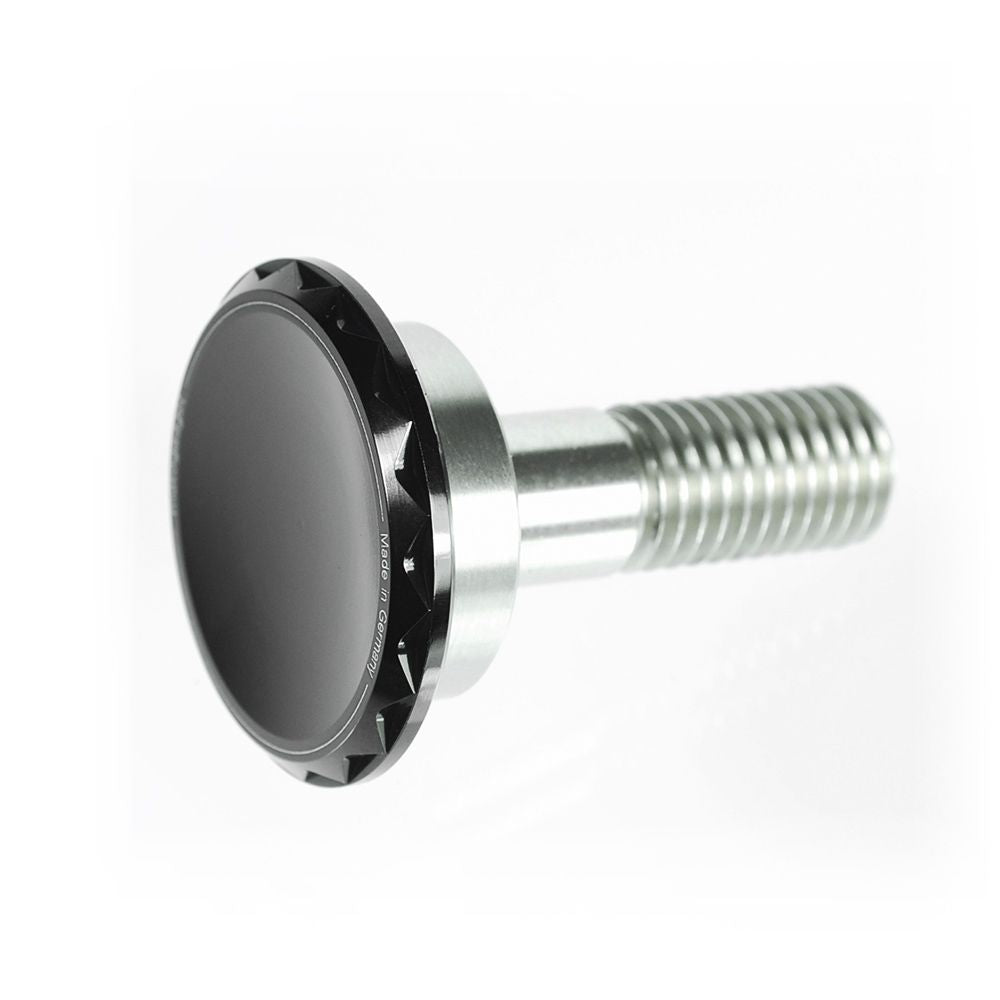

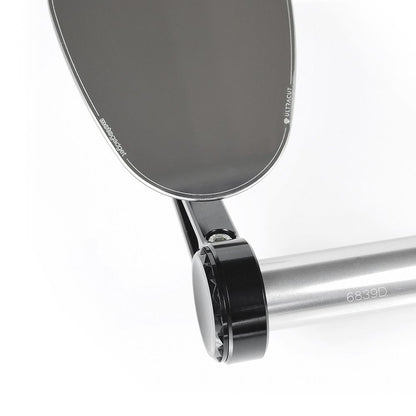

The m.view bar adapter BMW cap allows the mounting of all m.view handlebar end mirrors on BMW handlebars with M12 thread, without moving the grips and controls on the handlebars.

It creates a clamping surface for the handlebar end mirror outside the handlebar tube. The following mirrors can be mounted to this adapter: m.view blade, m.view spy, m.view flight, m.view cafe, m.view road, m.view pace, m.view cruise or m.view street.

It is CNC machined from stainless steel and billet aluminum and the aluminum cap is black anodized. The screw able cap is concave and decorated with a crown on the outside.

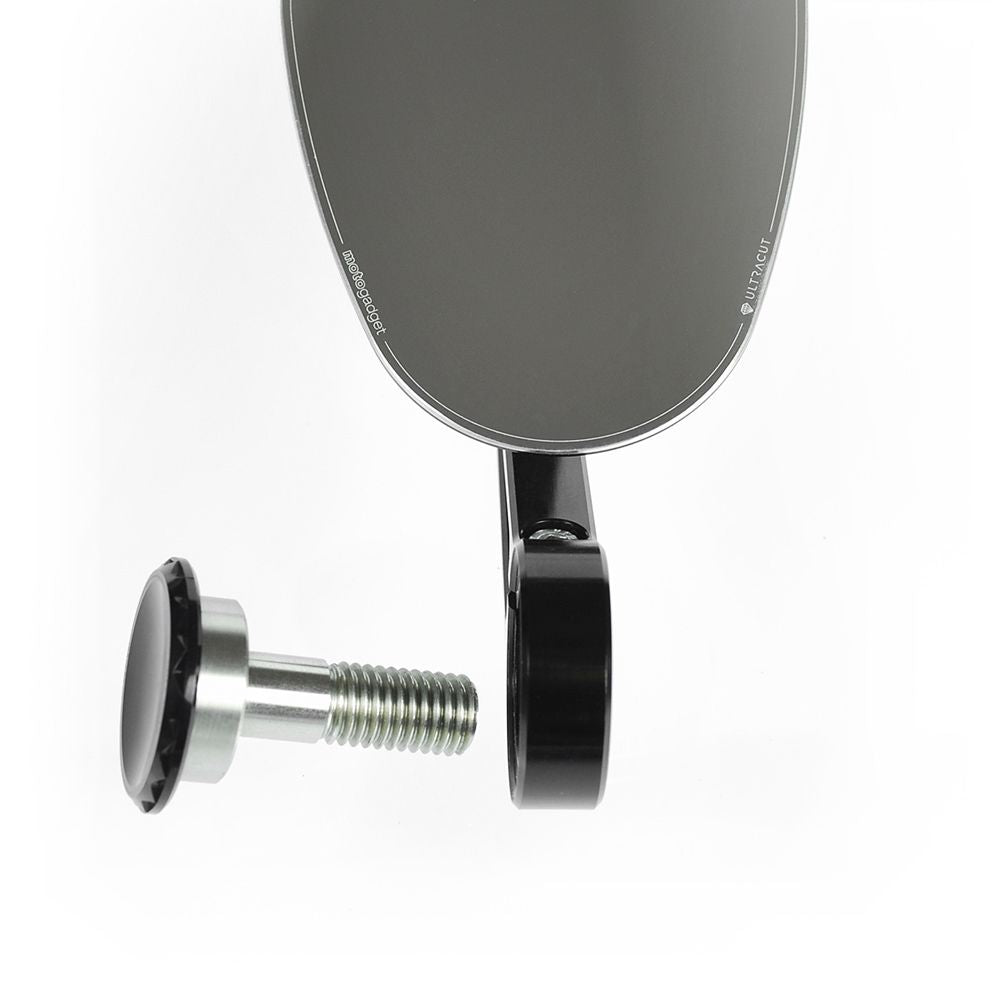

The installation on the handlebar end is done by screwing the M12 thread into the handlebar. Then the handlebar end mirror is clamped on the adapter. Then the screw able cap is fixed on the adapter again.

The m.view bar adapter BMW cap comes with two threaded pieces for the left and right side of the handlebar. They fit perfectly to our grip m.grip.

The assembly takes place directly into the M12 thread of the handlebar end.

Specifications And Features

Dimensions
Fits all BMW handlebars with M12 thread
Total length: approx. 47 mm
Width of clamping surface for mirror: 8 mm, fits all m.view handlebar end mirrors
Diameter of clamping surface: 1 inch, fits all m.view handlebar end mirrors
Weight (1 piece): approx. 50 g

Scope Of Delivery

2 x m.view bar adapter BMW cap, manual

Price is for 2 adapters
